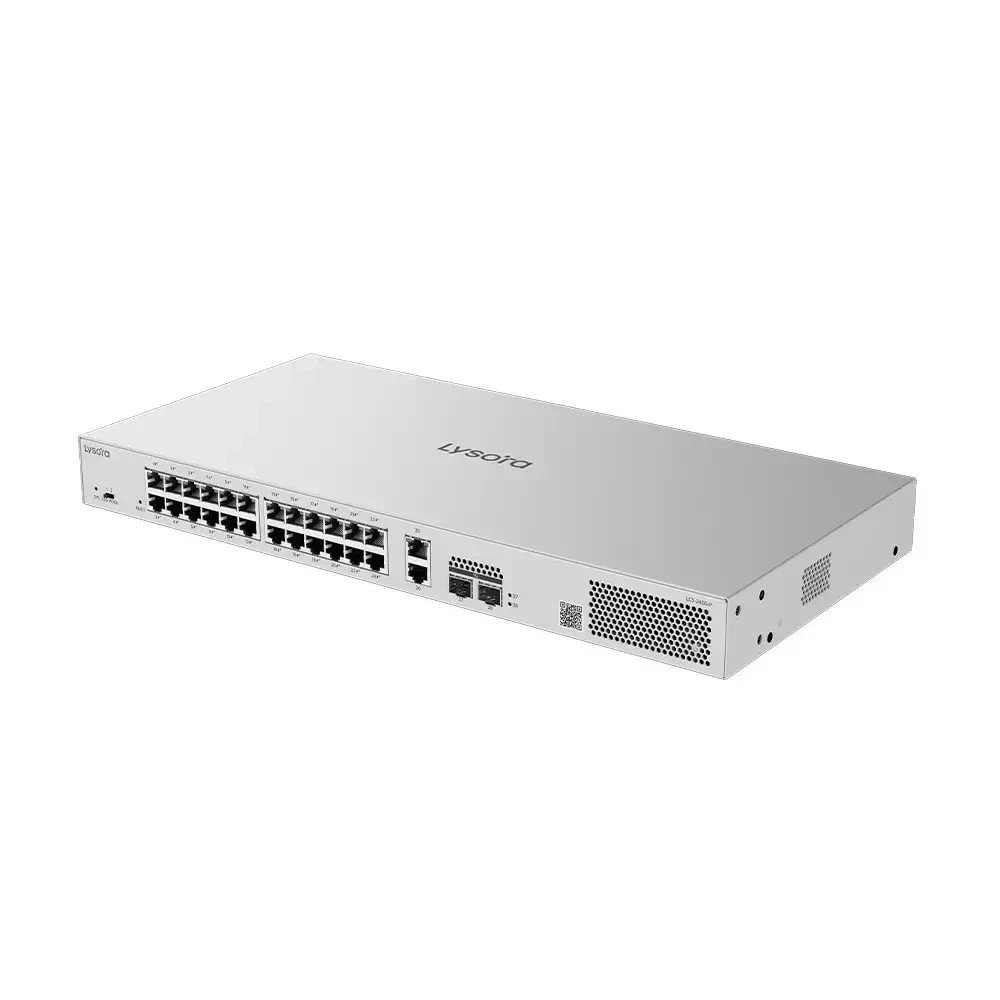

Lysora LCS-24GS-P 24-Port Gigabit Cloud Managed PoE Switch with 2 SFP Uplinks For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Lysora LCS-24GS-P 24-Port Gigabit Cloud Managed PoE Switch with 2 SFP Uplinks:
$399.00

LCS-24GS-P

24-Port Cloud Managed PoE Switch with 370 W PoE Budget

28-Port Gigabit Smart POE Switch
24 PoE/POE+ Gigabit RJ45 Ports with 2 Gigabit RJ45/2 SFP uplink ports
370W PoE power budget
Desktop Steel Case

Port SpecificationsTotal number of RJ45 ports26Total number of optical ports2Number of 1GE combo ports-Number of 1GE SFP ports2Number of 10GE SFP+ ports-Number of 10/100BASE-T ports-Number of 10/100/1000BASE-T ports26Number of 10/100/1000/2500BASE-T ports-Number of 100/1000/2.5G/5G/10GBASE-T ports-PoE SpecificationsNumber of PoE/PoE+ Out ports24Number of PoE/PoE+/PoE++ Out ports-PoE budget370 WPoE power pins1–2 (+), 3–6 (-)CasingMetalMountingRackWarranty3 yearsHardwareSystem SpecificationsSwitching capacity56 Gbps(bit/s)Forwarding rate41.6 MppsBuffer size4.1 MbitCPUMAC chip, single-core processor, 500 MHz clock frequencyFlash memory8 MBSystem Performance CapacityRecommended camera limit200W H265: 80 400W H265: 40Power supply and ConsumptionPower Method220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 6 AMax. Power Consumption25 W (with no PoE load) 400 W (with PoE full load)Heat Dissipation85.5 BTU/hr (220 V/50 Hz), with no PoE load 1,368 BTU/hr (220 V/50 Hz), with PoE full loadEnvironment and ReliabilitySurge protectionService port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential modeOperating temperature0°C to 40°C (32°F to 104°F)Storage temperature–40°C to +70°C (–40°F to +158°F)Operating humidity10% RH to 90% RH (non-condensing)Storage humidity5% RH to 95% RH (non-condensing)Fan1 x fixed fanCoolingAir cooling, front-to-rear airflowAltitude–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)MTBF200,000 hoursESD protectionAir discharge: 8 kV Contact discharge: 6 kVSoftwareBasic ConfigurationsPoE watchdogYESOnline upgradeYESInterfaceJumbo frame length (MTU)10000 bytesEEEYESCable testYESEthernet SwitchingMaximum number of VLANs16Maximum number of MAC address entries8000VLAN configuration supported on LAN portsYESIEEE 802.1Q VLANYESStatic MAC addressYESInterface flow controlYESInbound or outbound rate limiting based on interface trafficYESIP ServiceDNS clientYESDHCP clientYESSecurityPort isolationYESBroadcast storm controlYESMulticast storm controlYESUnknown unicast storm controlYESCPU Protection PolicyYESDHCP snoopingYESNetwork Management and MonitoringWeb managementYESCloud managementYESApp NetworkYESCamera detectionYESCompliance and StandardCertification and Regulatory ComplianceNDAA ComplainYESEMCEN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386Safety complianceEN 62638-1CertificationCE, FCCPackage ContentsDeviceDevice1ManualUser Manual1Warranty Card1AccessoriesRubber pad4Power cord retention clip-Screw6 x M4 x 8 mm cross recessed countersunk head screwsGrounding cable-Power cord1 x 1.8 m (5.91 ft.)Rack-mount bracket2
