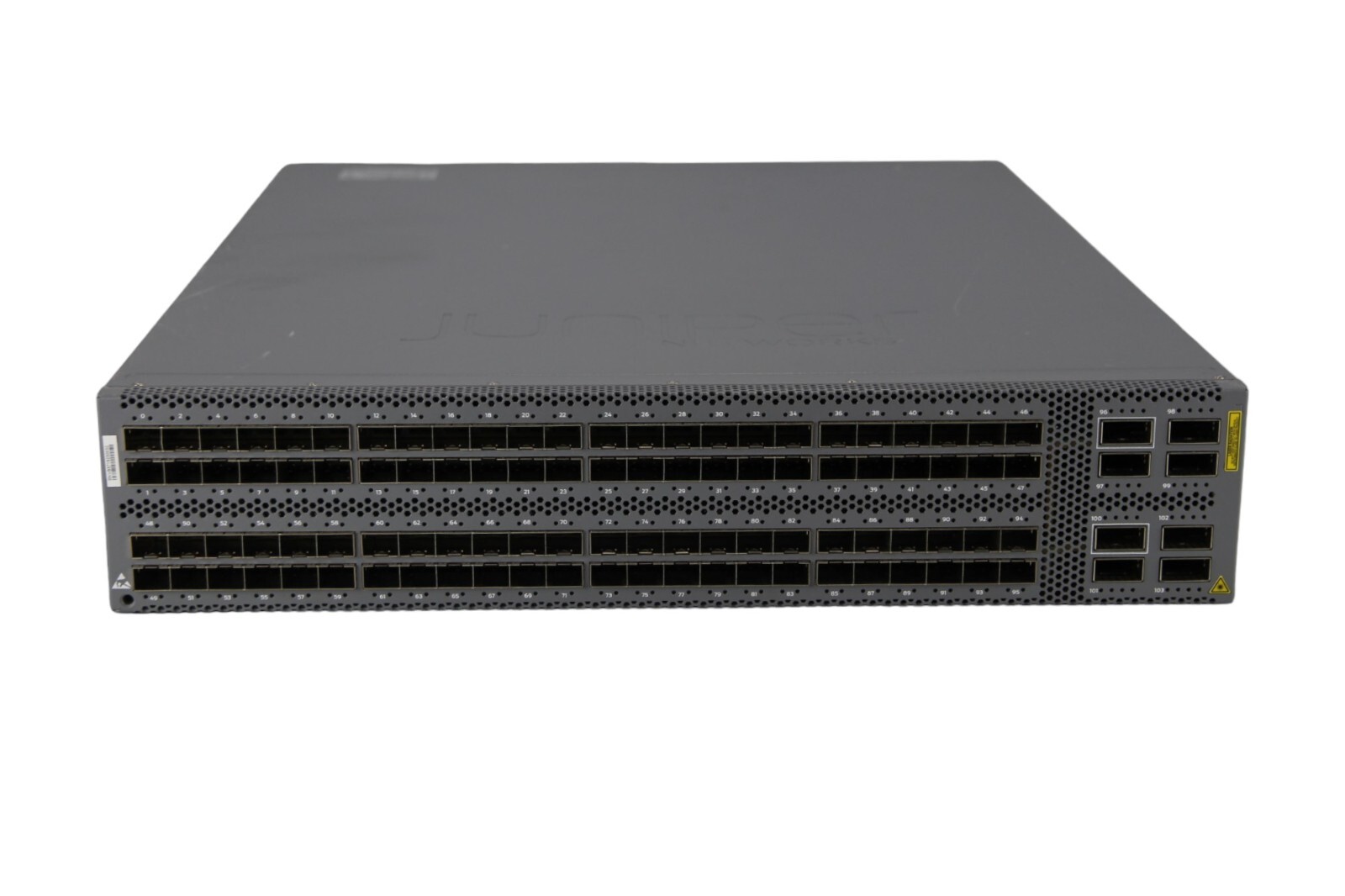

Juniper QFX5100-96S-AFI96SFP+/SFP PORTS 8QSFP+ PORTS REDUNDANT FANS 2x POWER SUPPLYDo you need a custom system configured to your specifications? No problem, we are here to help! Contact Us Today.PORT CONFIGURATION:The QFX5100-96S-AFI is a high-performance network switch from Juniper Networks, part of the QFX Series. It is designed for data center, campus, and service provider deployments, offering a mix of 10GbE and 40GbE interfaces in a compact 2U form factor. Below are the key specifications and features:
Key Specifications:• Model Name: QFX5100-96S-AFI• Form Factor: 2U rack-mountable
Interfaces:• 96 SFP+ Ports:
o These ports support 10 Gigabit Ethernet (10GbE) using SFP+ transceivers.
o Can also support 1GbE using compatible SFP transceivers.• 8 QSFP+ Ports:
o Each QSFP+ port can support 40 Gigabit Ethernet (40GbE).
o The QSFP+ ports can also be configured as 4x10GbE using breakout cables, offering additional flexibility.Throughput:• Switching Capacity: Up to 2.56 Tbps
• Forwarding Capacity: Up to 1.44 Bpps (billion packets per second)
Latency:• Low Latency: The switch offers low latency suitable for high-performance computing environments, with a typical latency of around 550 nanoseconds for L2 and L3 forwarding.
Buffer:• Packet Buffer: 12 MB shared across all ports, which helps in handling traffic bursts.
Power:• Airflow: The "AFI" in the model number indicates "Airflow In," meaning the cooling air flows from the front to the back of the switch. This is important for ensuring compatibility with your data center cooling design.• Power Supply: Supports hot-swappable, redundant power supplies. Specific power supply units (PSUs) depend on the deployment environment, with options for AC or DC power.Features:• Layer 2 Features:
o VLANs, LACP, STP/RSTP/MSTP
o Advanced L2 multicast features like IGMP Snooping• Layer 3 Features:
o IPv4/IPv6 Routing, OSPF, BGP, IS-IS
o VRF, Static Routing, RIP• Automation and Programmability:
o Support for automation tools like Python, REST APIs, and event-based automation with Junos OS.
o Zero Touch Provisioning (ZTP) for simplified deployment.• Juniper's Junos OS:
o The switch runs on Juniper's Junos OS, which provides a consistent operating environment across the QFX Series, ensuring reliable performance and a broad feature set.Environmental:• Operating Temperature: 0° to 40°C (32° to 104°F)
• Relative Humidity: 5% to 90% non-condensing
Use Cases:• Data Center: As a spine or leaf switch in a fabric architecture.
• Campus Aggregation: Serving as an aggregation switch in large campus environments.
• Service Provider: Suitable for metro and edge deployments due to its high port density and flexible configuration options.
Summary:The Juniper QFX5100-96S-AFI switch is ideal for high-density, high-performance networking environments, offering flexible configuration, automation capabilities, and advanced networking features. It's well-suited for modern data centers, large campus networks, and service provider environments requiring robust and scalable network solutions.
PLEASE NOTE - STOCK PHOTOS ARE SHOWN AND MAY NOT BE THE ACTUAL UNIT SHIPPED.
Buy with confidence, this part ships with a 30 day money back guarantee, and 90 day warranty.
